Easytork Control Valve Actuator (ECA Series)

Our control valve actuator is an industry leader because of its patented vane design as well as its great quality and consistency.

1/10TH THE WEIGHT, 1/6TH THE SIZE, WITH BETTER THAN/EQUAL TO BENCHMARK TEST PERFORMANCE, AND MORE COST EFFECTIVE AND EFFICIENT

Better or Equal Performance to Spring and Diaphragms
Easy Installation to Splined Control Valves (ECA-F Series) or Valves with Square/DD/Bore & Key Stems (ECA-IC Series)
The Smallest and The Lightest Actuator for Control Valves
Patented Solutions to Hard Problems
Easy Retrofit to Common Control Valves

For any questions about Easytork’s control valve actuator, contact us now!

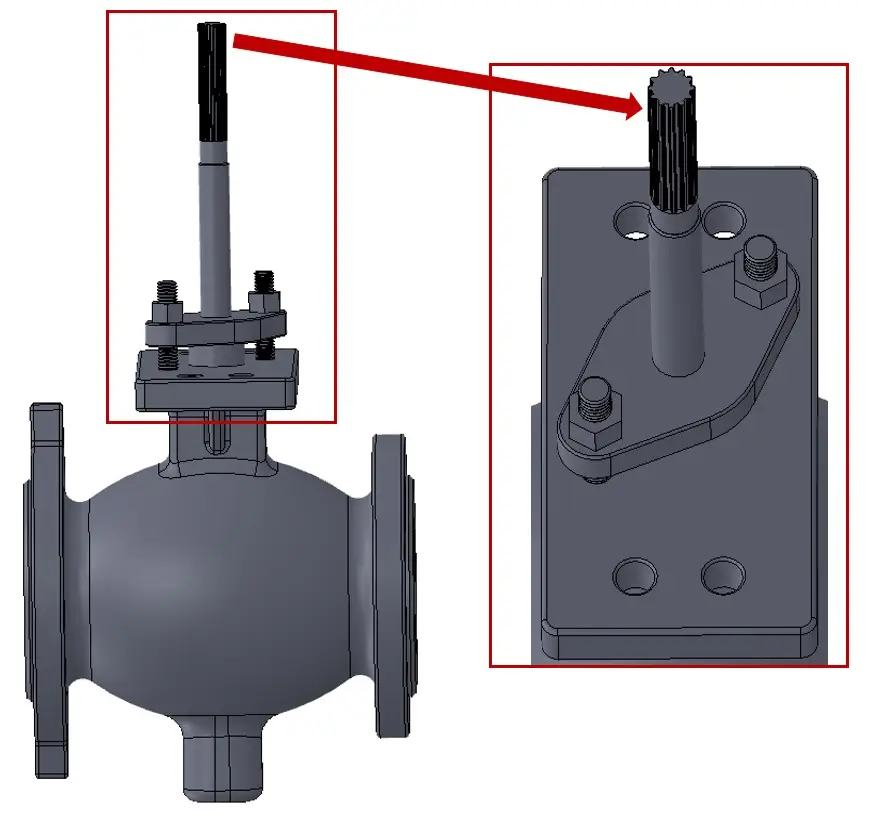

The ECA-F Series is compatible with valves with splined shafts.

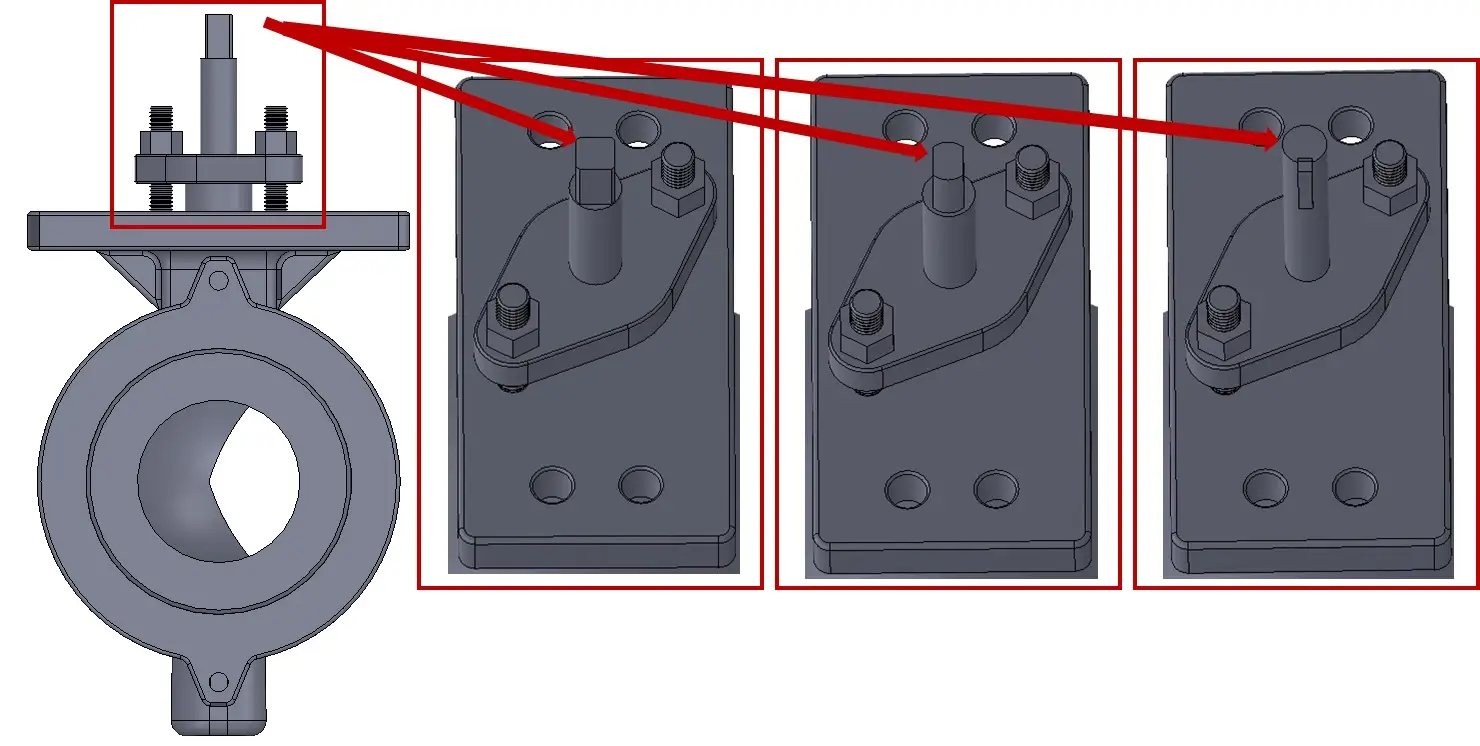

The ECA-IC Series is compatible with valves with square, DD, bore & key stems.

ECA Performs Better Than or Equal to Spring & Diaphgram Actuators on Control Valves

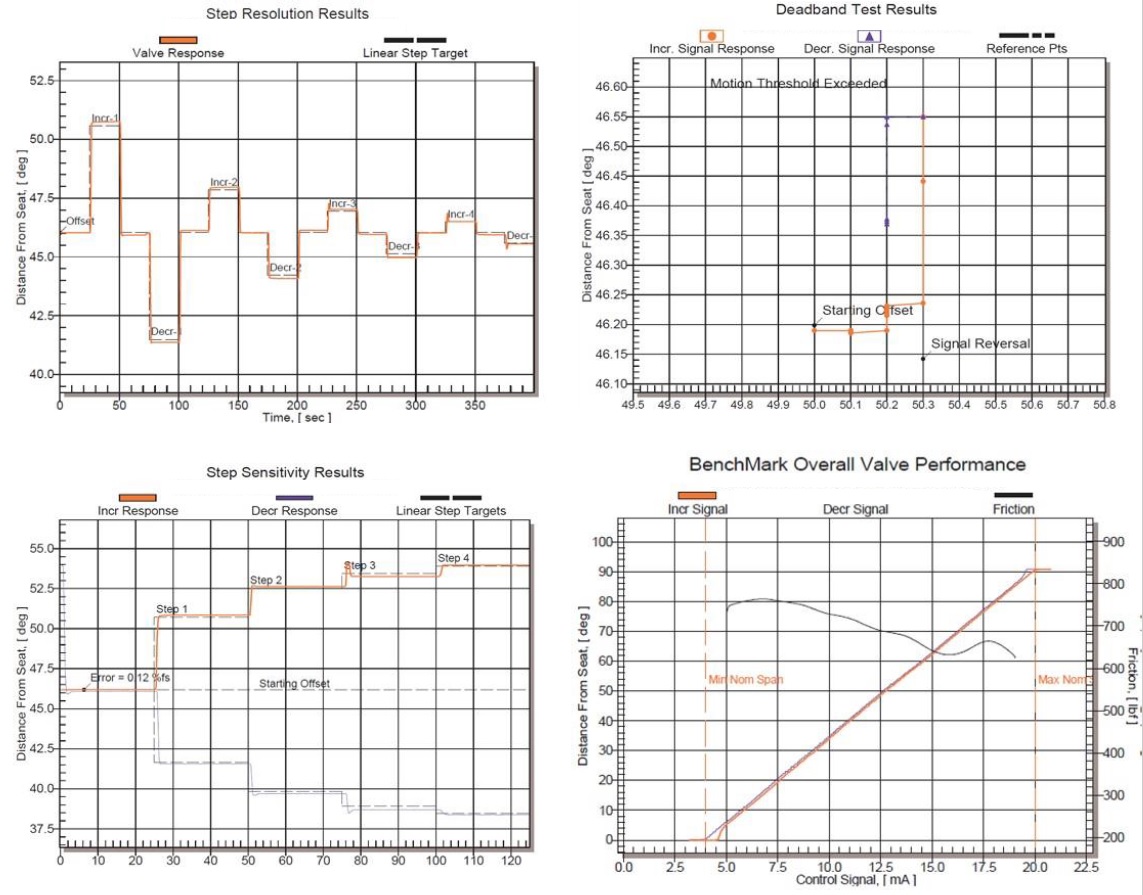

Using the BenchMark™ control valve diagnostic system performed by a third party, Easytork’s Control Actuator exceeds or is equal to spring-and-diaphragm for HDRL (hysteresis, dead band, repeatability and linearity).

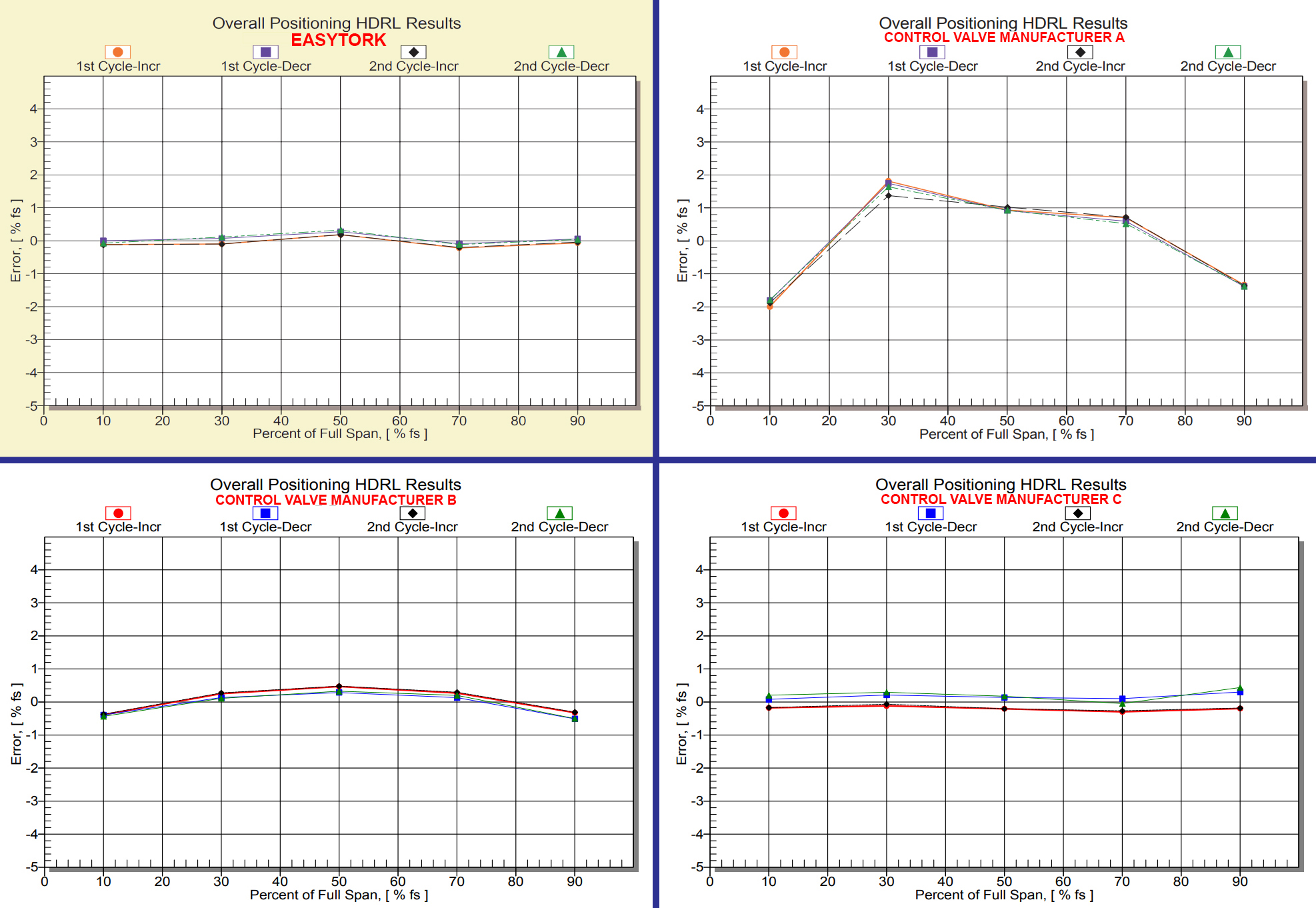

ECA-F Series Comparison vs. Other Control Valve Manufacturers

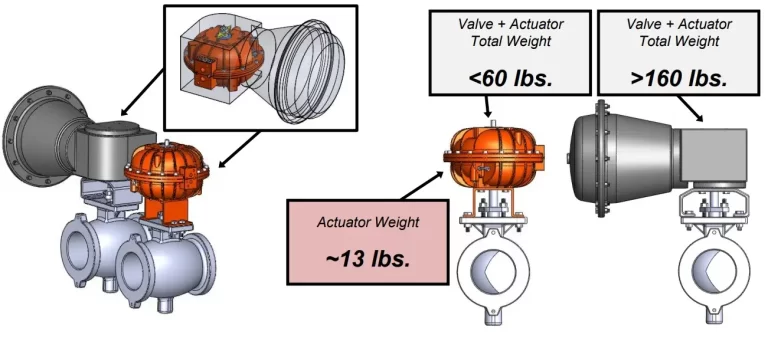

Smallest and Lightest Control Valve Package (by up to tenfolds)

The Easytork actuator is the smallest and lightest actuator in the market. The size and weight on a 3” control valve package are as follows:

Easy Assembly to Control Valve

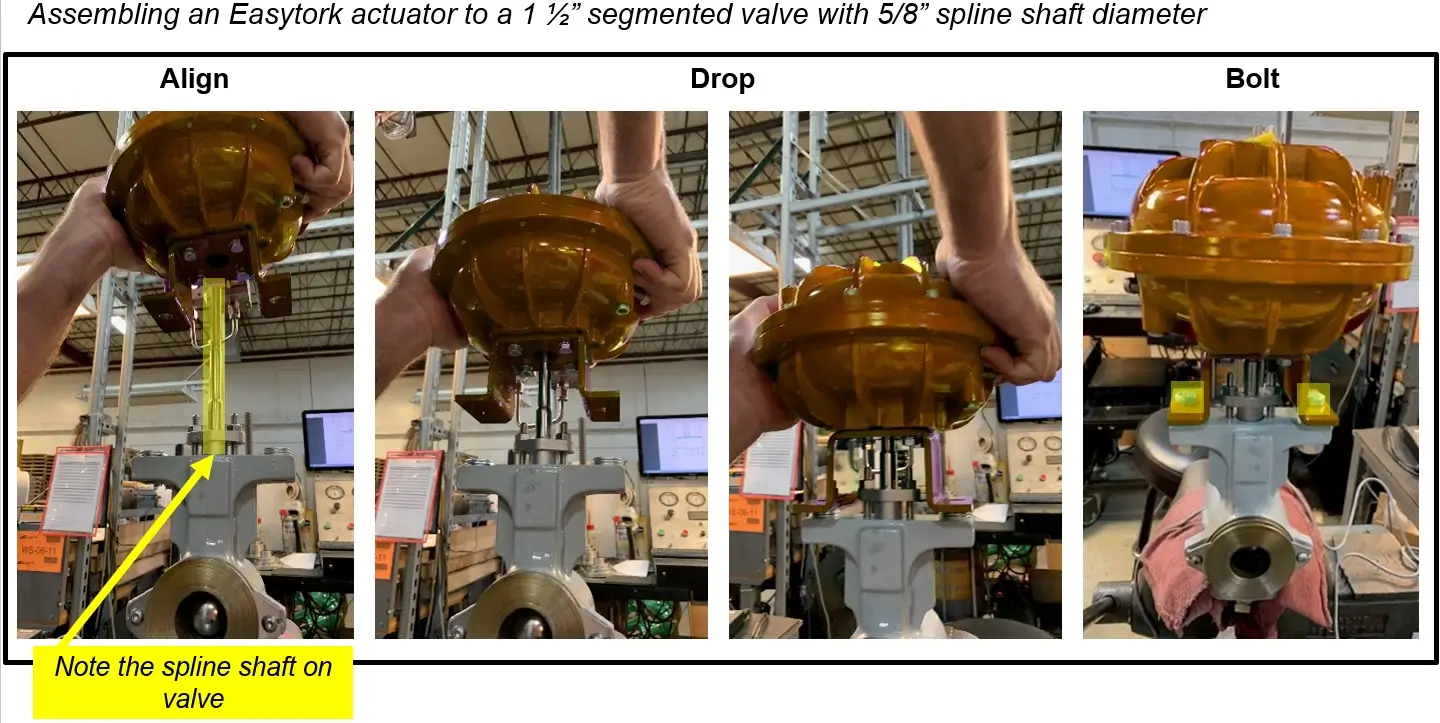

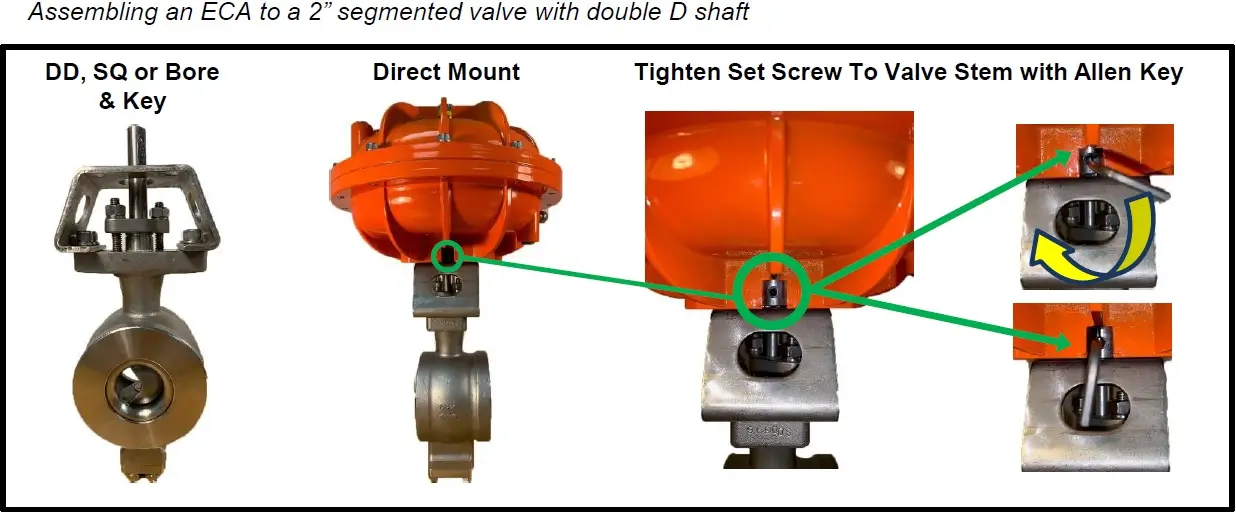

Assembling ECA Actuator to control valve is as easy as ALIGN, DROP, and BOLT.

Easy Function Change – Fail-Open or Fail-Close (Fail-CW, Fail-CCW) or Double-Acting

Installing or not installing Easytork’s NAMUR Trip Valve (“NTV”) determines what function (fail-safe, in CW or CCW, or double-acting) the actuator has. This can be done even when the valve is in line.
